Cảm Biến Nhiệt Độ THERMOCOUPLE

0
Hãng sản xuất : NEW-FLOW
Warranty : Đài loan
Mode : New-Flow THERMOCOUPLE
Code : GE1-01596
Price : Call
Category : New-Flow RTD, Thermocouple
Size :
Range :
Views : 3873
Date update : 20/11/2011
Quantity :


Mô tả sản phẩm



Cảm Biến Nhiệt Độ THERMOCOUPLE

Model                                                   : THERMOCOUPLE

Manufacture                                        : NEW - FLOW

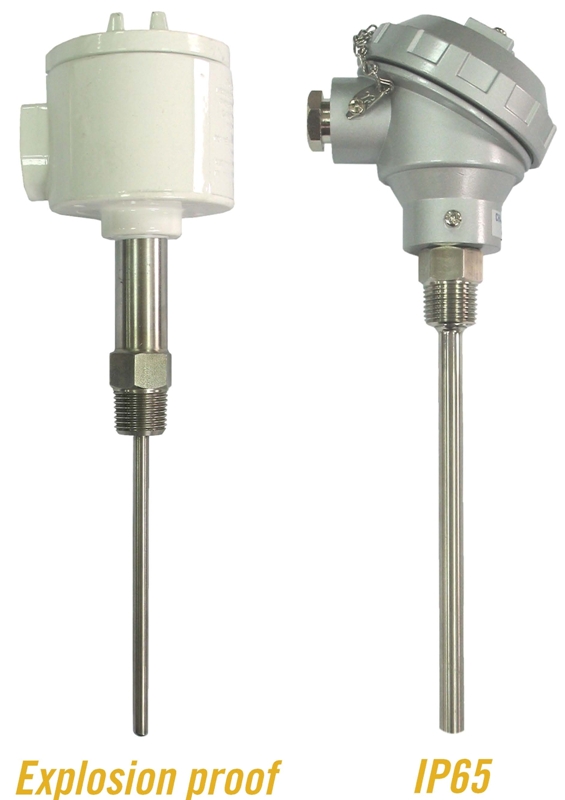

Head housing                                      : IP65. Explosion proof available

K, E, J, T type available.

Dial size                                                : Ø1.0 ~Ø8.0 mm on request

Sheath material                                   : SS316, SS310, inconel 600 on request

Working temperature limited             : -200~1050°C according to applicable standards table.

Measuring junction type                    : Grounded type, Ungrounded type, Ungrounded separated type



Element Material



Symbol Positive Plarity (+) Negative Polarity (-)
N Alloy: nickel,chromium and silicone Alloy: nickel and silicone
K Alloy: nickel and chromium Alloy: nickel
E Alloy: nickel and chromium Alloy: copper and nickel
J Iron Alloy: copper and nickel
T Copper Alloy: copper and nickel



















Applicable Standards Table



Standard    IEC 584-2-1982 / JIS C1605-1995    ASTM E230-1996
 Symbol Class Temp. Range (°C) Tolerance (°C) Class Temp. Range (°C) Tolerance (°C)
N & K 1 -40~+375 ±1.5  STD.  0~+1260

±2.2 or ±0.75%

  +375~+1000 ±0.004|t|
2 -40~+333 ±2.5  SP. ±1.1 or ±0.4%
  +333~+1200  ±0.0075|t|
3 -167~+40  ±2.5  STD.  -200~0  ±2.2 or ±2%
  -200~-167  ±0.015|t|
E  1  -40~+375 ±1.5  STD.  0~+870  ±1.7 or ± 0.5%
   +375~+800  ±0.004|t|
 2  -40~+333  ±2.5  SP.  ±1 or ±0.4%
   +333~+900  ±0.0075|t|
 3  -167~+40 ±2.5  STD.  -200~0  ±1.7 or ±1%
   -200~-167  ±0.015|t|
 J  1  -40~+375  ±1.5  STD.  0~+760  ±2.2 or ±0.75%
   +375~+750  ±0.004|t|
 2  -40~+333  ±2.5  SP.  ±1.1 or ±0.4%
   +333~+750  ±0.0075|t|
T  1  -40~+125  ±0.5  STD.  0~+370  ±1 or ±0.75%
   +125~+350  ±0.004|t|
 2  -40~+133  ±1.0  SP.  ±0.5 or ±0.4%
   +133~+350  ±0.0075|t|
 3  -67~+40  ±1.0  STD.  -200~0  ±1 or ±1.5%
   -200~-67  ±0.0075|t|















































Ordering Information



Code Head Housing Protection
  IP65 (1) HN (2) HP (3) HD (4) HI (5) HB
  Explosion proof (6) KS (7) S1 (8)S2









Code Sensor Type
A Spring Loading Hexagonal Head Thread Type
B Spring Loading Nipple Thread Type
C Welded Hexagonal Head Thread Type
D Welded Nipple Thread Type















Code Sensor Connection Size
  Thread type (1) ½" NPT (2) ¾" NPT (3) Option









Code Conduit Connection
  (A) ½" NPT Female (B) 3/4" NPT Female (O) option









Code Sensor Dimensions "0.D" mm
  (1) 1.0 (2) 1.6 (3) 3.2 (4) 4.8 (5) 6.4 (6) 8.0 (0) option









Code Sheath Material
A SS316
B SS310
C Inconel 600
O Option











Code Element Type
  N K E J T







Code Element No
S Single
D Double









Code Measuring Junction
G Grounded type
U Ungrounded type
US Ungrounded separated type











Code Sensor Class
(1) Class 1
(2) Class 2
(3) Class 3











Code Sensor insersion Length "L"
  Please directly fill in requesting length (mm)



------------------------------------------------------------------------------------------------------------------------------------
