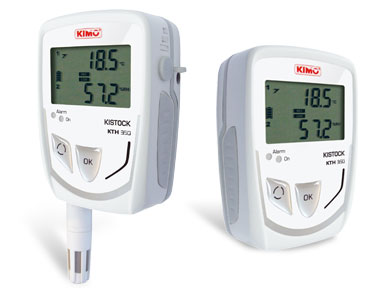

Datalogger-Humidity and temperature-KTH 350



Model	:	KTH 350
Manufacturer	:	KIMO
Origin	:	France









Pt 100 temperature and humidity datalogger.
Measure from 1 to 4 parameters.

Caracteristics

• Internal sensor + 2 Pt 100 external inputs
• IP65 casing
• 100,000 measurement points
• 2-line display
• 2 configurable setpoints alarms
• Magnetic mounting

Probes

Current/ voltage input cables

PVC cable, length 2 m. Measuring range :
- from 0 to 2500 mV
- from 0 to 10 V
- from 0 to 4/20 mA

Ammeter clamps

Accuracy : 1% of the scale.
Available measurement ranges : 0-20A, 0-50A, 0-100A, 0-200A, 0-600A.



Pt 100 kistock probes

Large choice of Pt100 temperature probes : general use, penetration, ambient, threaded, wire, velcro...
From -100 to +400°C.



ABS hygrometry probes

For kistock



Probe made of ABS/PC, output on PC HT cable (High Temperature), length 2m.
Measuring range from -20 to +80°C and from 0 to 100 %HR - Length 130 mm.



Stainless steel hygrometry probe

For kistock



Stainless steel probe with protective perforated tip and stainless steel filter. Output on silicone cable Ø 4,8 mm, length 2m.
Measuring range : from 0 to 100 %HR and from -40 to +180°C - Length : 150 mm or 300 mm.



Accessories

Secured wall-mounting bracket

Anti-theft system

KIMO has designed a new, proprietary anti-theft system, with no padlock. Your system cannot be unlocked or damaged : installation is secured !



Printer

Portable



Printer with rolls of paper, battery charger and 4 rechargeable batteries. Easy to use, you can print the value of the device screen at any time.



KNT data collector

For kistosk



KNT data collector allows you to collect measurements from onr or several KISTOCK dirctly on-site (500,000 values stored). Data can then be displayed and printed from the KNT or downlozded to your PC.

KILOG software

KISTOCK software

Data processing software KILOG (standard) and KILOG CFR (meets 21 CFR part 11 standard). Configuration of intrument, channels, recording.

Data download : One click and you can quickly download data (1000 points per second) from KISTOCK or from the KNT data recorder. KILOG software offers archive storage and retrieval.

Data processing with clear and accurate tables and graphs. (Automatisatic calculation, modify the name, marge several measurement data sets, upgrade your KISTOCK to a data acquisition system, an display acquisition curves in real time !

------------------------------------------------------------------------------------------------------------------------------------
