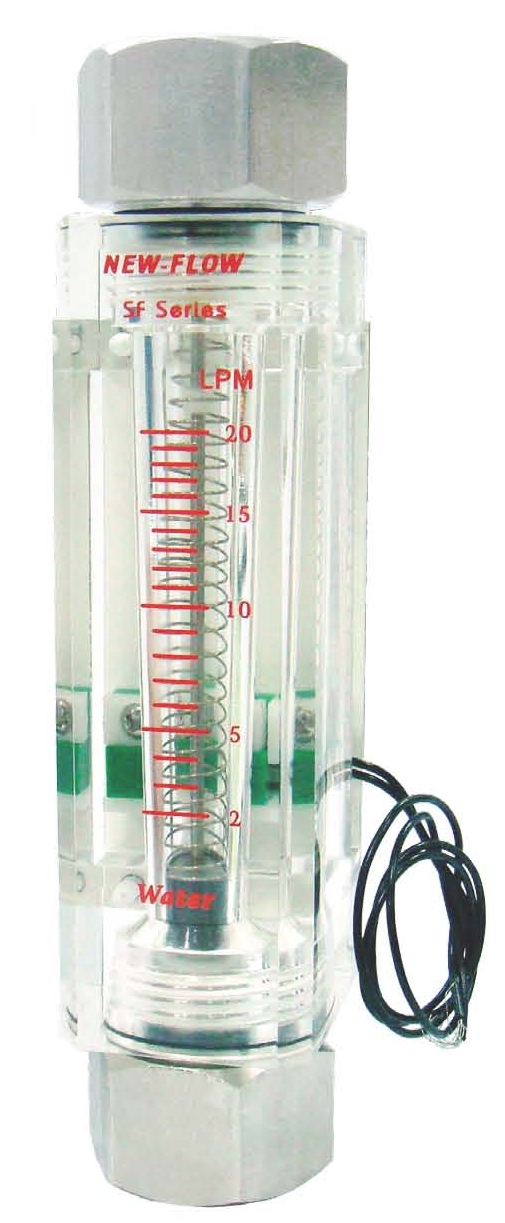

ĐỒNG HỒ ĐO LƯU LƯỢNG SF100

Model                                               : SF100

Manufacture                                     : NEW - FLOW

Service                                             : liquid, oil

Wetted parts material                       : Body-Acrylic Plastic O-ring-NBR, Float-magnet coating with polypropylene (P.P)

Connection material                         : SS316

Connection size                                : 3/8", 1/2", 3/4" NPT female available

Mounting                                           : vertical and horizontal available, various flow directions

Temperature & pressure limits         : 150 psig(10bar) @ 100°F(38°C)

Temperature limit                             : -24°C~+54°C

Accuracy                                                : ±5% full scale

Alarm switch                                          : one or two setting points, form A N.O. type bistable reed switch

Switch rating                                         : AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA

Weight                                                     : 0.45~0.5kg

(Contact setting point should be within 10% to 80% of FS)



Ordering information



Code	Flow Range
A	0.6~4 LPM	E	3~30 LPM
B	1.6~10 LPM	F	5~50 LPM
C	2~20 LPM	G	6~60 LPM
D	6~40 LPM











Code	Alarm Switch
1R	One setting point
2R	Two setting points
0	Without alarm









Code	Process Connection in Female
A	3/8" NPT (L=150mm)
B	1/2" NPT (L=150mm)
C	3/4" NPT (L=162mm)











Code	Flow Direction
BT	Bottom to Top
TB	Top to Bottom
RL	Right to Left
LR	Left to Right











------------------------------------------------------------------------------------------------------------------------------------
