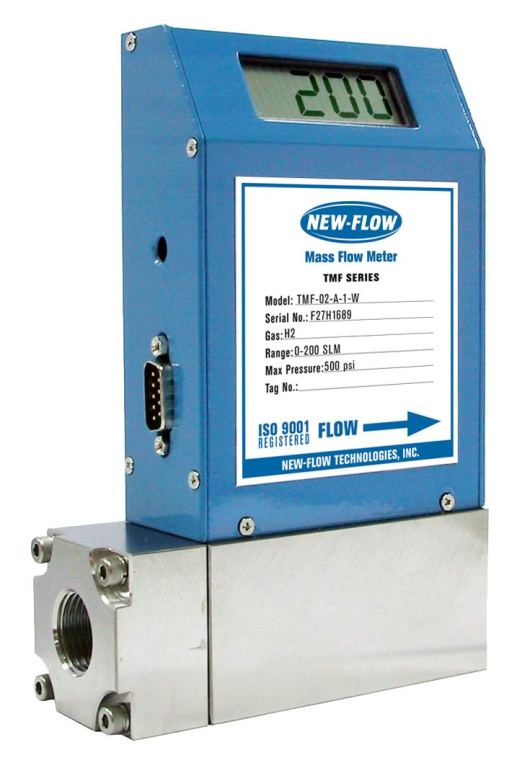

Đồng Hồ Đo Lưu Lượng TMF SERIES

Model                             : TMF SERIES

Manufacture                  : NEW - FLOW

Wetted Material             : Standard flowbody - 316 Stainless Steel,

                                          Option available. O-ring-Viton.

Output Signal                 : 0-5 VDC Linear min.

Input Power                    : 24 VDC Standard, optional power supply 15 VDC 115 VAC, 220 VAC @500mA

Accuracy                          : +/- 1% F.S (including Linearity)

Turn Down Ratio            : 100:1

Repeatability                   : +/- 0.15% F.S or better

Electric Connection       : 9 Pin Sub "D"

Process Connection      : 1/2" NPT Female

Range                              : 0-100 SLM to 0-200 SLM

Minimum Pressure         : 100" H2O

Max Pressure                  : 500 PSIG

Temperature Range       : 0~50°C

Respone Time                 : 1 Second

Temp. Coefficient           : 0.05% Full scale per 1°C or better

Pressure Coefficient      : 0.01% full scale per PSIG or better

Weight                               : app. to 1.64 kg with power supply



Range Table



Code	SLM
00	0-100
01	0-150
02	0-200
03	*Custom Flow Rate













Code	Flow Range
00	0-100 SLM
01	0-150 SLM
02	0-200 SLM
03	*Custom size (please directly fill in the requested range.)













Code	Wetted Material
(A)	SS316
(O)	Option









Code	Process Connection
1	1/2" NPT (F)







Code	Display
W	With display
O	Without display









Code	Output Signal
(1)	0-5VDC
(2)	4-20 mA









Code	Input Power
(1)	24VDC
(2)	15VDC









Code	Power Supply for 24vdc
(1)	with
(2)	without









------------------------------------------------------------------------------------------------------------------------------------
