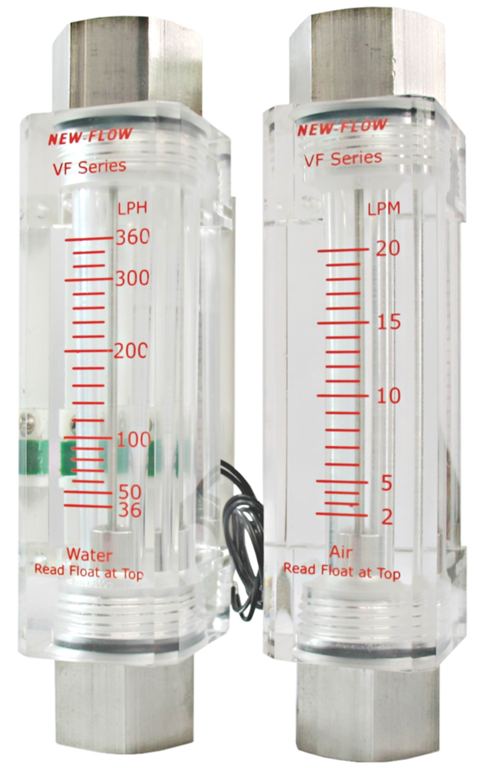

ĐỒNG HỒ ĐO LƯU LƯỢNG VF100

Model                                                 : VF100

Manufacture                                      : NEW - FLOW

Service                                              : Water, Air

Wetted parts material                      : Body-Acrylic Plastic O-ring-NBR, Float-magnet coating with Nickel

Connection material                        : SS316

Connection size                               : 3/8", 1/2", 3/4" NPT female available

Mounting                                           : vertical position

Temperature & pressure limits      : 150 psig (10bar) @ 100°F(38°C)

Temperature limit                             : -24°C~+54°C

Accuracy                                             :±5% full scale

Alarm switch                                       : one or two setting points, form A N.O. type bistable reed switch

Switch rating                                      : AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA

Weight                                                 : 0.45~0.5kg

(Contact setting point should be within 10% to 80% of FS)



Ordering information



Code	Flow Range
A	Water
LPH	(1) 6~60 (2)10~140 (3)25~250 (4)60~360
LPM	(5) 0.1~1 (6)0.2~2 (7)0.4~4 (8)1~6 (9)1~10
B	Air
LPM	(10)2~20 (11)6~60 (12)12~120 (13)20~200 (14)40~400

















Code	Alarm Switch
1R	One setting point
2R	Two setting point
0	Without alarm









Code	Process Connection in Female
A	3/8" NPT (L=150mm)
B	1/2" NPT (L=150mm)
C	3/4" NPT (L=162mm)











Code	Flow Direction
BT	Bottom to Top







------------------------------------------------------------------------------------------------------------------------------------
