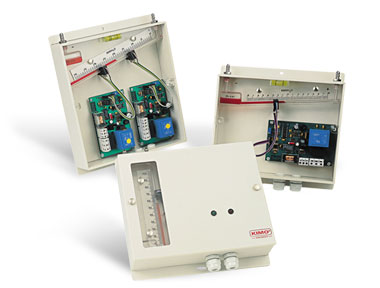

Liquid column manometers-Inclined-Model ECM

The advantage of these instruments is the possibility of viewing pressure measurements and establishing 1 or 2 on-off electric contacts with high accuracy and repeatability.

Technical data

• Inclined version in mmCE : 8-0-8, 20-0-20, 0-10, 0-20, 0-40, 0-60
• Vertical version in mmCE : 0-100, 0-150, 0-200, 0-300
• Positive, negative and differential pressure measurement, with the option of 1, 2 or multiple electric contacts on the same scale.
• Electric contacts from 0,5 mmH2O (5 Pa).
• Delay adjustable from 0 to 45 seconds.
• Contact rating : 3A at 230 V. - 50 Hz.
• Operation of the contact on rising or falling pressure, by using the inverter function.
• Simple pressure setting by cursor on graduated scale.
• Max. static pressure of 6 bar, when used on differential pressure.
• Pressure and switching points continuously displayed.
• Switch position indicated by LED.

Accessories

Manometers connections

Simple connection in chromed brass or Delrin, chromed brass safety, valve connection in chromed brassed (male/female 1/8 gas or female/male 1/8 gas)...

Manometer liquids

Réf. AWS 10 : Density = 0,87. Bottle of : 20 ml, 30 ml, 125 ml, 250 ml, 500 ml, 1000 ml.
Réf. HG : Density = 1,86. Bottle of : 10 ml, 20 ml, 30 ml, 125 ml.
Réf. VF 1 : Density = 1. Bottle of : 20 ml, 30 ml, 125 ml, 250 ml, 500 ml, 1000 ml.
Réf. VOLT 1S : Density = 1,86. Bottle of : 10 ml, 20 ml, 30 ml, 125 ml.
Réf. Tetra Bromure : Density = 2,96. Bottles of : 20 ml, 30 ml, 125 ml.

Pressure connections

Wide range of pressure connections
for double-shell wall, quick connection for wall without rear access, simple connection with rear nut, through-connection for partitions standard...

Detection cursor

Arrangement of visual alarm : Photoelectric cell, a transmitter-receiver, connected with the amplifier by optical fibre.

Sensors accessories

• Mounting brackets
• Sliding fittings
• Connection fittings

------------------------------------------------------------------------------------------------------------------------------------
