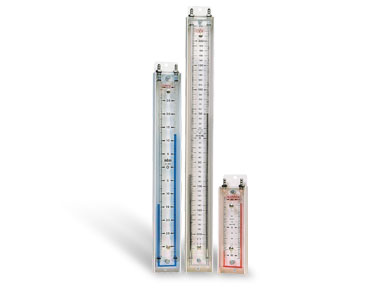

Liquid column manometers-Vertical-Model LU Series



Model	:	LU Series
Manufacturer	:	KIMO
Origin	:	France







Applications : measuring variations of pressure, depression or differential pressure of air or gas within measurement ranges which vary according to the type of manometric liquid used : AWS 10, VOLT 1S or MERCURY.

Measurement range

• AWS.10 Liquid d=0,87 (in mmCE) : 50-0-50, 100-0-100, 150-0-150, 200-0-200, 300-0-300, 400-0-400, 500-0-500
• VOLT.1S Liquid d=1,86 (in mmCE) : 220-0-220, 330-0-330, 430-0-430, 650-0-650, 870-0-870, 1090-0-1090
• Hg Liquid d=13,545 (in mbar) : 240-0-240, 310-0-310, 440-0-440, 620-0-620, 780-0-780

"U"- shaped column for measuring consecutively positive and negative pressures.

• Measurement by addition of values read on each column.
• Zero adjustment by moving the slide strip.
• For fixed use regardless of the manometric liquid used.
• For portable use with the LU model using VOLT 1S liquid.
• Comes with a white PVC support, 2 screws and 2 rawlplugs, two 487 connectors and a bottle of liquid.

Accessories

Tubes

Clear and silicone tube

Clear tube Ø 5 x 8
For permanent installation (m/l or 25m).
Silicone tube Ø 4 x 7
Black or white, for test instruments (m/l or 25 m).



Connections accessories

Straight connection for Ø 5 x 8 tube.
T-connection for Ø 5 x 8 tube.
Y-connection for Ø 5 x 8 tube.



Manometers connections

Simple connection in chromed brass or Delrin, chromed brass safety, valve connection in chromed brassed (male/female 1/8 gas or female/male 1/8 gas)...



Manometer liquids



Réf. AWS 10 : Density = 0,87. Bottle of : 20 ml, 30 ml, 125 ml, 250 ml, 500 ml, 1000 ml.
Réf. HG : Density = 1,86. Bottle of : 10 ml, 20 ml, 30 ml, 125 ml.
Réf. VF 1 : Density = 1. Bottle of : 20 ml, 30 ml, 125 ml, 250 ml, 500 ml, 1000 ml.
Réf. VOLT 1S : Density = 1,86. Bottle of : 10 ml, 20 ml, 30 ml, 125 ml.
Réf. Tetra Bromure : Density = 2,96. Bottles of : 20 ml, 30 ml, 125 ml.



Pressure connections



Wide range of pressure connections
for double-shell wall, quick connection for wall without rear access, simple connection with rear nut, through-connection for partitions standard...

------------------------------------------------------------------------------------------------------------------------------------
