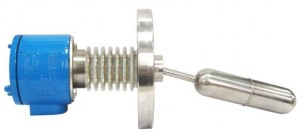

Thiết Bị Đo Mức, Báo Mức LXT203F FLANGE TYPE For High Temperature



Model	:	LXT203F FLANGE TYPE For High Temperature
Manufacturer	:	NEW - FLOW
Enclosure housing	:	Explosion proof - EEx d II C T6, IP65
Process connection	:	1½" ~ 4" Flange type
Flange rating	:	JIS, ANSI, DIN available
Material	:	Wetted parts 316 stainless steel
Temperature limits	:	-30°C to 350°C
Pressure limits	:	3.0 MPa (30 kg/cm²), option: up to 4.5 MPa
Float working specific gravity	:	>=0.7 (option: less than 0.7 available on request)
Switch function	:	SPDT Micro switch
Switch rating	:	3A/250VAC, 3A/30VDC, 0.4A/125VDC
Conduit connection	:	1/2"NPT, 3/4"NPT female, option available























Ordering Information



Code	Type
S	Standard type
E	Extension Arm Type









Code	Process  Connection Size
(1)	1"
(2)	2"
(3)	3"
(4)	4"
(5)	Option













Code	Process Connection Rating
(A)	JIS10K
(B)	JIS20K
(C)	ANSI 150
(D)	ANSI 300
(E)	PN16
(F)	PN25
(G)	option

















Code	Conduit Connection Size
(1)	1/2"NPT
(2)	3/4"NPT
(3)	Optioni











Code	Flange Material
(1)	SS316
(2)	SS304
(3)	Option









------------------------------------------------------------------------------------------------------------------------------------
