Thiết Bị Đo Mức Model GLG-RL SERIES

0
Hãng sản xuất :
Warranty : KOREA
Mode : GLG-RL SERIES
Code : GE1-01659
Price : Call
Category : Liquid Level Solutions Measurements
Size :
Range :
Views : 2721
Date update : 19/11/2011
Quantity :


Mô tả sản phẩm

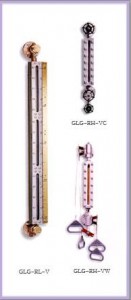

Thiết Bị Đo Mức Model GLG-RL SERIES

(Flat & Reflex Type Glass Level Gauge)



◈ Flat Type Glass Level Gauge
  The flat type glass level gauge has been developed to comply with the requirements of SOLAS.
  The toughened borosilicate glass windows is housed and proteced in a robust stainless steel column.
  This type level gauge is used for marine oil tanks.
excluding those of flash point of 60℃ below.
  Flat type level gauge allow an excellent observation of colorless liquid level through reflection of several parallel grooved glass.

◈ Reflex Type Glass Level Gauge
  The reflex type level gauge consists of a sturdily constructed body, glass and cover securely fixed by u-bolts to endure high pressure.
  This type level gauge feature serveral parallel grooves cut into the glass surface that is in contact with liquid.
  Thus the level of even transparent liquid can be clearly observed.


◈ Model Classification and Spercification

Model GLG-RL GLG-RH
type V R A VC VW
Valve type Lower Self-closing Self-closing Self-closing Screw-down valve Cock valve
Upper Self-closing Tank return Top vent Screw-down valve w/wire
handle
Connection
size 		JIS
5K20A, 25A		 JIS
5K20A, 25A		 JIS
5K20A, 25A		 JIS
16K, 20A		 JIS
16K, 20A
Range of
pressure		 3㎏/㎠ 3㎏/㎠ ATM 50㎏/㎠ 20㎏/㎠
Range of temp 150℃ 150℃ 150℃ 300℃ 300℃
Material Valve BC6 BC6 BC6 C. S C. S
Front channel SUS304 SUS304 SUS304 C. S C. S
Back channel SUS304 SUS304 SUS304 C. S C. S
Glass Borosilicate Borosilicate Borosilicate Borosilicate Borosilicate
Center to
Center 		285 ~ 5100 (mm) 320 ~ 2870 (mm)

•  The level gauges shall be classified into three types V, R, A according to the shape of
   the upper body.
•  Please consult with our factory when other conditions are required.
•  The scale board is optional item.

• DIMENSION


◈ Standard Manufacture Length For GLG-RL
Length between center of top and bottom valves (Adjustment of ± 10mm Available)

◈ Special Feature
The Flat type glass level gauge is very easy to discernment of liquid level even at far away because to ve colored to back channels.

◈ Standard Manufacture Length For GLG-RH
C-C V-L G-L C-C V-L G-L C-C V-L G-L
320
345
370
395
405
425
455
485
505
525
545
605		 90
115
140
165
175
195
225
255
275
295
315
375		 130
155
180
205
215
235
265
295
315
335
355
415

780
860
900
1020
1075
1195
1255
1370
1435
1530
1610
1665

 550
630
670
790
845
965
1025
1140
1205
1300
1380
1435 		590
670
710
830
885
1005
1065
1180
1245
1340
1420
1475 		1850
1865
1965
2200
2255
2265
2320
2535
2550
2675
2870
  		1620
1635
1735
1970
2025
2035
2090
2305
2320
2445
2640
  		1660
1675
1775
2010
2065
2075
2130
2345
2360
2485
2680
* C-C :Center to Center distance
* V-L : visible length
* G-L : Gauge body length		 C to C ≥ GL + 190(mm)
C to C ≥ VL + 230(mm)
C to C ≥ 1850(support)

------------------------------------------------------------------------------------------------------------------------------------
