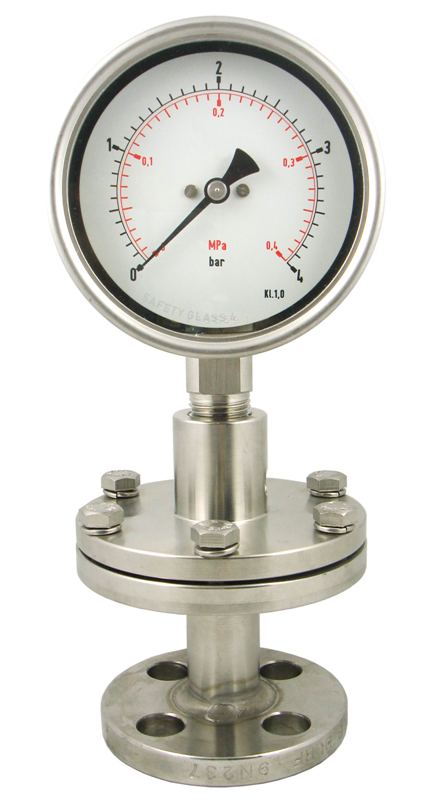

Đồng Hồ Áp Suất Màng DT116

Model                                 : DT116

Manufacture                      : NEW - FLOW

Instrument connection     : female thread ¼" to ½" BSP or NPT

Membrane size                  : Ø55, Ø75 available

Process connection          : ½" to 3" Flange, JIS, ANSI, DIN available

Temperature limited         : -40~+150°C cooling element or capillary line up to 350°C

Pressure range limited     : Maximum up to 40 kg/cm², Teflon lining type up to 25 kg/cm²

Minimum                             : -760 mmHg~0 (Ø75 Membrane); -1 ~ 15 kg/cm² (Ø55 Membrane)

Material                               : Upper & Lower housing -SS316 (standard), others on request Wetted parts Teflon lining available on request.

Membrane                          : SS316L (standard); Options- Hastelloy C276, SS316L with teflon lining, tantalum, and others on request.



Dimensions



Item	Description of Parts
a	Upper housing
b	Lower housing
c	Membrane
d	Instrument connection
e	Filling port
f	Process connection
g	Screw bolt
h	Teflon lining

















Ordering Information



Code	Instrument Connection (Female)
(A)	1/4"BSP
(B)	1/4"NPT
(C)	3/8"BSP
(D)	3/8"NPT
(E)	1/2"BSP
(F)	1/2"NPT















Code	Membrane size
(A)	Ø55
(B)	Ø75









Code	Process connection rating
(1)	1/2"
(2)	3/4"
(3)	1"
(4)	1½"
(5)	2"
(6)	3"
(7)	Option

















Code	Flange rating
(1)	150#
(2)	300#
(3)	PN16
(4)	PN25
(5)	JIS 10K
(6)	JIS 20K
(7)	Option

















Code	Upper housing material
(S)	SS316 (standard)
(O)	Option









Code	Lower housing material
(S)	SS316
(O)	Option
(T)	SS316 + Teflon lining (Only can up to 1" size.)











Code	Membrane material
(1)	SS316L
(2)	Hastelloy C276
(3)	Tantalum
(4)	SS316 + Teflon lining
(5)	Option













------------------------------------------------------------------------------------------------------------------------------------
