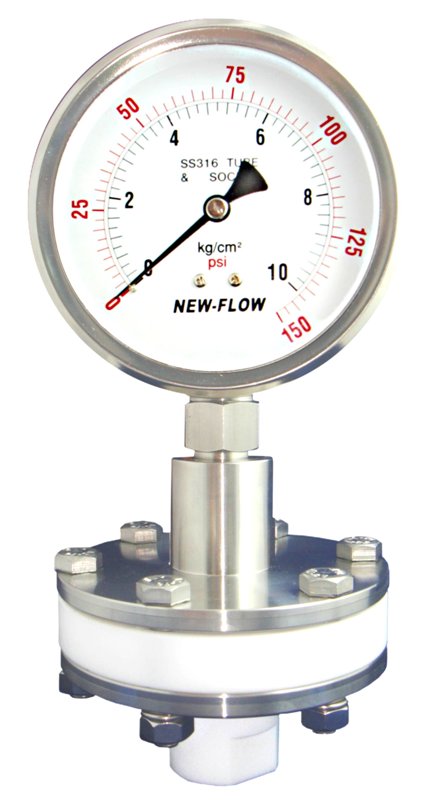

Đồng Hồ Áp Suất Màng DT114

Model                                     : DT114

Manufacture                          : NEW - FLOW

Instrument connection        : Female thread ¼" to ½" BSP or NPT

Membrane size                     : Ø55, Ø75

Process connection             : ¼" to ½" BSP or NPT

Measurement range             : -760mmH2O ~ 0 ~ 10 kg/cm² (Ø75 Membrane)

                                                  0 ~ 25 kg/cm² (Ø55 Membrane)

Max. temperature                 : Up to 120°C

Material                                  : Upper housing - SS316 (standard); Low housing - P.V.C, P.P, PVDF, Teflon available

Membrane material               : SS316L + Teflon lining (standard); Options - Hastelloy C276, Tittanium, Tantalum and others on request.



Dimensions



Item	Description of Parts
a	Upper housing
b	Low housing
c	Membrane
d	Instrument connection
e	Filling port
f	Supporting ring
g	Screw bolt















 Ordering Information



Code	Instrument Connection Size
(A)	¼"
(B)	3/8"
(C)	½"











Code	Instrument Connection Rating
(1)	NPT
(2)	BSP









Code	Upper Housing Material
(S)	SS316
(O)	Option









Code	Low Housing Material
(V)	PVC
(P)	P.P
(T)	Teflon
(PV)	PVDF













Code	Membrane Material
(H)	Hastelloy C
(Ti)	Titanium
(Ta)	Tantalum
(Tf)	SS316 + Teflon lining
(O)	Option













Code	Process Connection Size
(A)	¼"
(B)	3/8"
(C)	½"











Code	Process Connection Thread
(A)	NPT (male)
(B)	NPT (female)
(C)	PF (male)
(D)	PF (female)











------------------------------------------------------------------------------------------------------------------------------------
