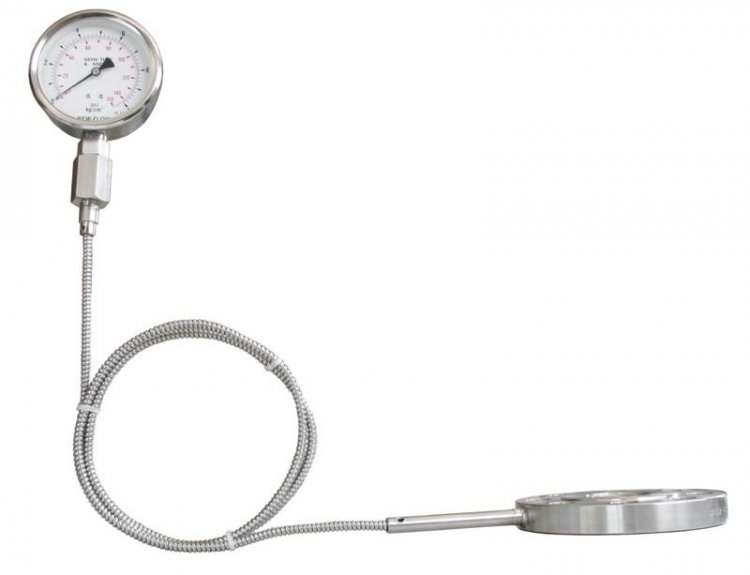

Đồng Hồ Áp Suất Màng DT129



Model	:	DT129
Manufacture	:	NEW - FLOW
Instrument connection	:	female thread 1/4" to 1/2" BSP or NPT
Process connection	:	2" to 4" flange, JIS, ANSI, DIN, available
Temperature limited	:	-40~+350°C
Pressure range limited	:	(measurement type)













Size	2"	3"	4"
MINIMUM LIMITED (kg/cm²)	-1~1.5	-760mmHg~0 -1~0.6 0~2.5	0~0.6
MAXIMUM LIMITED (kg/cm²)	0~60	0~60	0~40















Material	:	body-SS316(standard), others on request
Membrane	:	SS316L(standard)
Option	:	Hastelloy C276, tantalum others on request











Dimensions



Item	Description of Parts
a	Housing
b	Capillary supporter
c	Membrane
d	Filling port











Ordering Information



Code	Instrument Connection (Female)
(A)	1/4" BSP
(B)	1/4" NPT
(C)	3/8" BSP
(D)	3/8" NPT
(E)	1/2" BSP
(F)	1/2" NPT















Code	Process connection rating
(1)	2"
(2)	3"
(3)	4"
(4)	Option











Code	Flange rating
(1)	150#
(2)	300#
(3)	PN16
(4)	PN25
(5)	JIS 10K
(6)	JIS 20K
(7)	Option















Code	Housing material
(S)	SS316 (standard)
(O)	Option









Code	Membrane material
(1)	SS316L
(2)	Hastelloy C276
(3)	Tantalum
(4)	Option











------------------------------------------------------------------------------------------------------------------------------------
