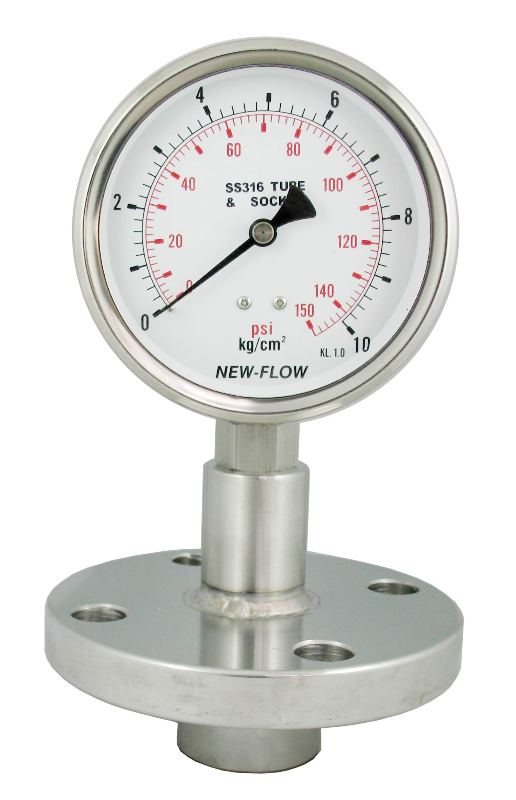

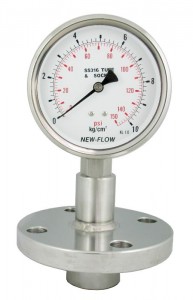

Đồng Hồ Áp Suất Màng DT128



Model	:	DT128
Manufacture	:	NEW - FLOW
Instrument connection	:	female thread 1/4" to 1/2" BSP or NPT
Process connection	:	2" to 4" flange, JIS, ANSI, DIN, available
Temperature limited	:	-40~+150°C cooling element or capillary line up to 350°C
Pressure range limited	:	measurement range









Size	2"	3"	4"
MINIMUM LIMITED (kg/cm²)	-1~+1.5	-760mmHg~0 -1~1.5	0~0.6
MAXIMUM LIMITED (kg/cm²)	0~60	0~60	0~40













Material	:	body- SS316 (standard), others on request
Membrane	:	SS316L (standard)
Option	:	Hastelloy C276, tantalum and others on request











Dimensions



Item	Description of Parts
a	Upper housing
b	Extension housing
c	Membrane
d	Instrument connection
e	Filling port













Ordering Information



Code	Instrument Connection (Female)
(A)	1/4"BSP
(B)	1/4"NPT
(C)	3/8"BSP
(D)	3/8"NPT
(E)	1/2"BSP
(F)	1/2"NPT

















Code	Process connection rating
(1)	2"
(2)	3"
(3)	4"
(4)	Option













Code	Flange rating
(1)	150#
(2)	300#
(3)	PN16
(4)	PN25
(5)	JIS 10K
(6)	JIS 20K
(7)	Option

















Code	Housing material
(S)	SS316 (standard)
(H)	Hastelloy C276









Code	Membrane Material
(1)	SS316L
(2)	Hastelloy C276
(3)	Tantalum
(4)	Option



------------------------------------------------------------------------------------------------------------------------------------
