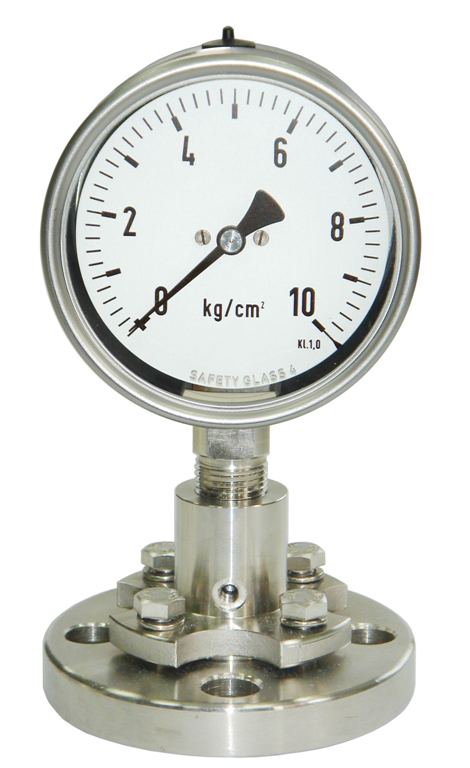

Đồng Hồ Áp Suất Màng DT122



Model	:	DT122
Manufacture	:	NEW - FLOW
Instrument connection	:	female thread 1/4" to 1/2" BSP or NPT
Membrane size	:	Ø36, Ø45, Ø75 available
Process connection	:	1/2" to 3" Flange, JIS, ANSI, DIN available
Temperature limited	:	-40 ~+ 150°C cooling element or capillary line up to 350°C
Pressure range limited	:
Ø75 Membrane	:	-760 mmHg~0, Minimum process flange 2" x 150#
Ø45 Membrane	:	Maximum up to 40 kg/cm²
		Minimum -1~3 kg/cm², 0~4 kg/cm²
		Minimum process flange 3/4" x 150#
Ø36 Membrane	:	Maximum up to 40 kg/cm²
		Minimum 0~6 kg/cm²
		Minimum process flange 1/2" x 150#
Material	:	Upper & Lower housing-SS316 (standard), others on request
Membrane	:	SS316L (standard); Options- Hastelloy C276, tantalum, and others on request.



Dimensions



Item	Description of Parts
a	Upper housing
b	Lower housing
c	Membrane
d	Instrument connection
e	Filling port
f	Screw bolt













Ordering Information



Code	Instrument Connection (Female)
(A)	1/4"BSP
(B)	1/4"NPT
(C)	3/8"BSP
(D)	3/8"NPT
(E)	1/2"BSP
(F)	1/2"NPT

















Code	Membrane size
(A)	Ø36
(B)	Ø45
(C)	Ø75











Code	Process connection rating
(1)	1/2"
(2)	3/4"
(3)	1"
(4)	1½"
(5)	2"
(6)	3"
(7)	Option

















Code	Flange rating
(1)	150#
(2)	300#
(3)	PN16
(4)	PN25
(5)	JIS 10K
(6)	JIS 20K
(7)	Option

 .















Code	Upper housing material
(S)	SS316 (standard)
(O)	Option









Code	Lower
(S)	SS316
(O)	Option









Code	Membrane material
(1)	SS316L
(2)	Hastelloy C276
(3)	Tantalum
(4)	Option











------------------------------------------------------------------------------------------------------------------------------------
